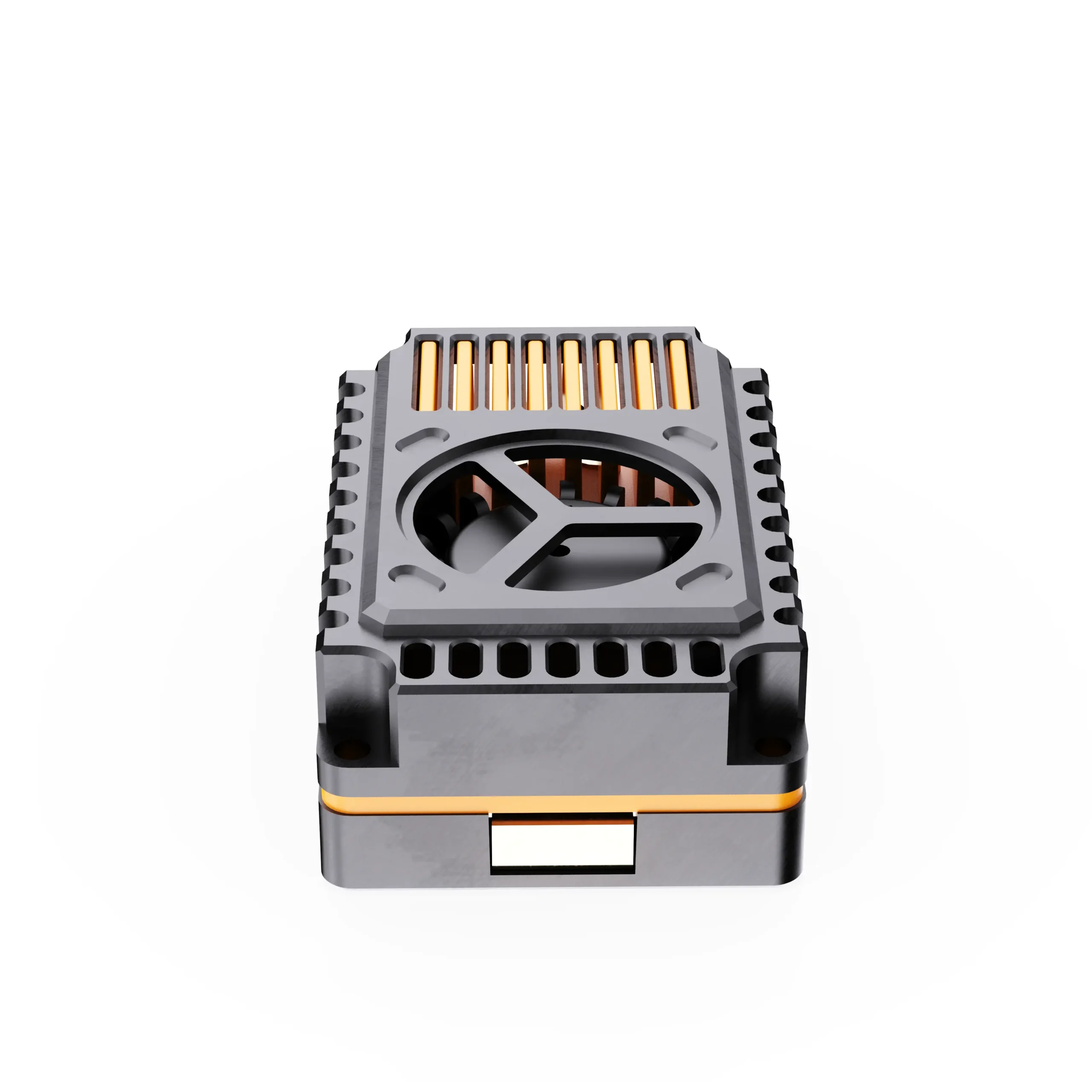

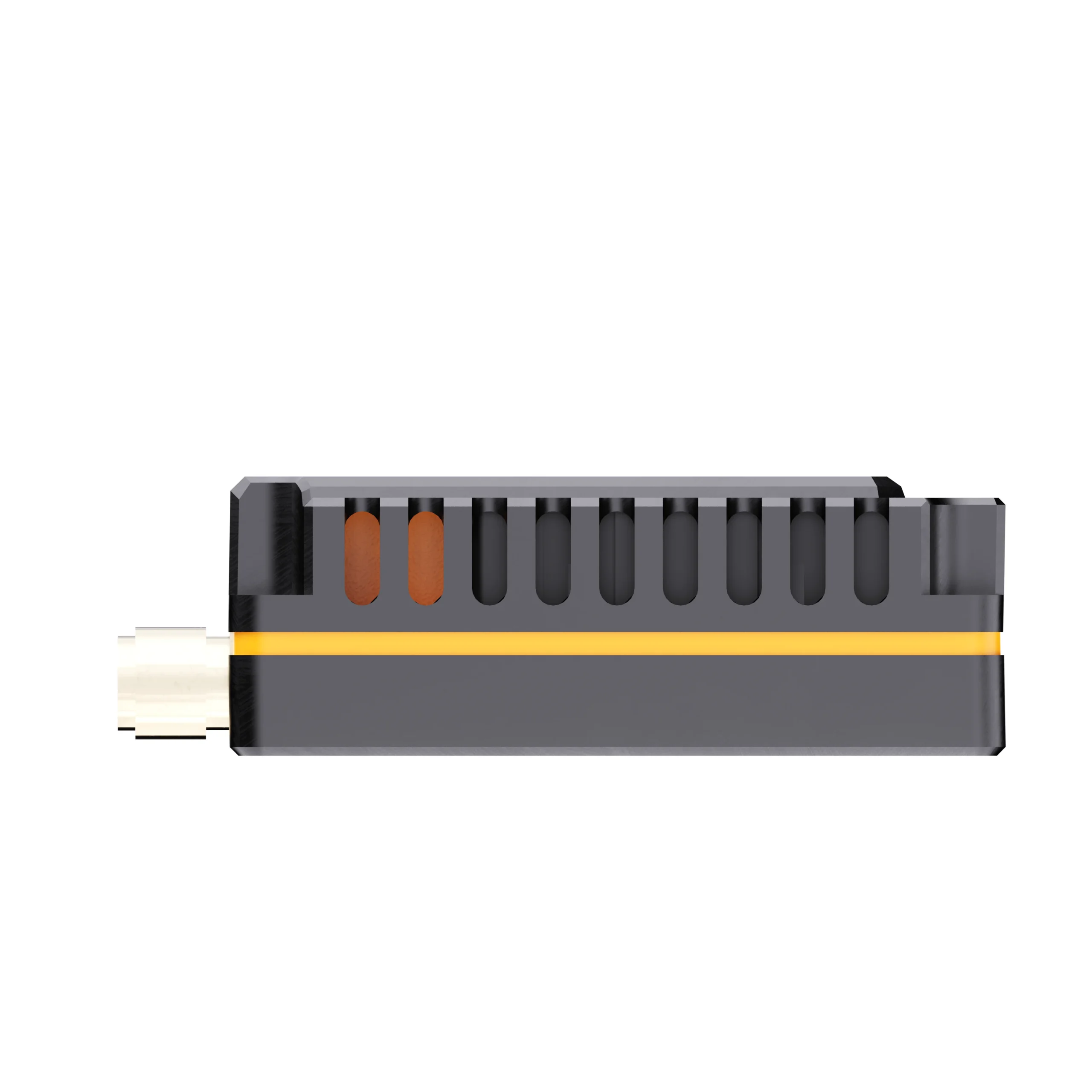

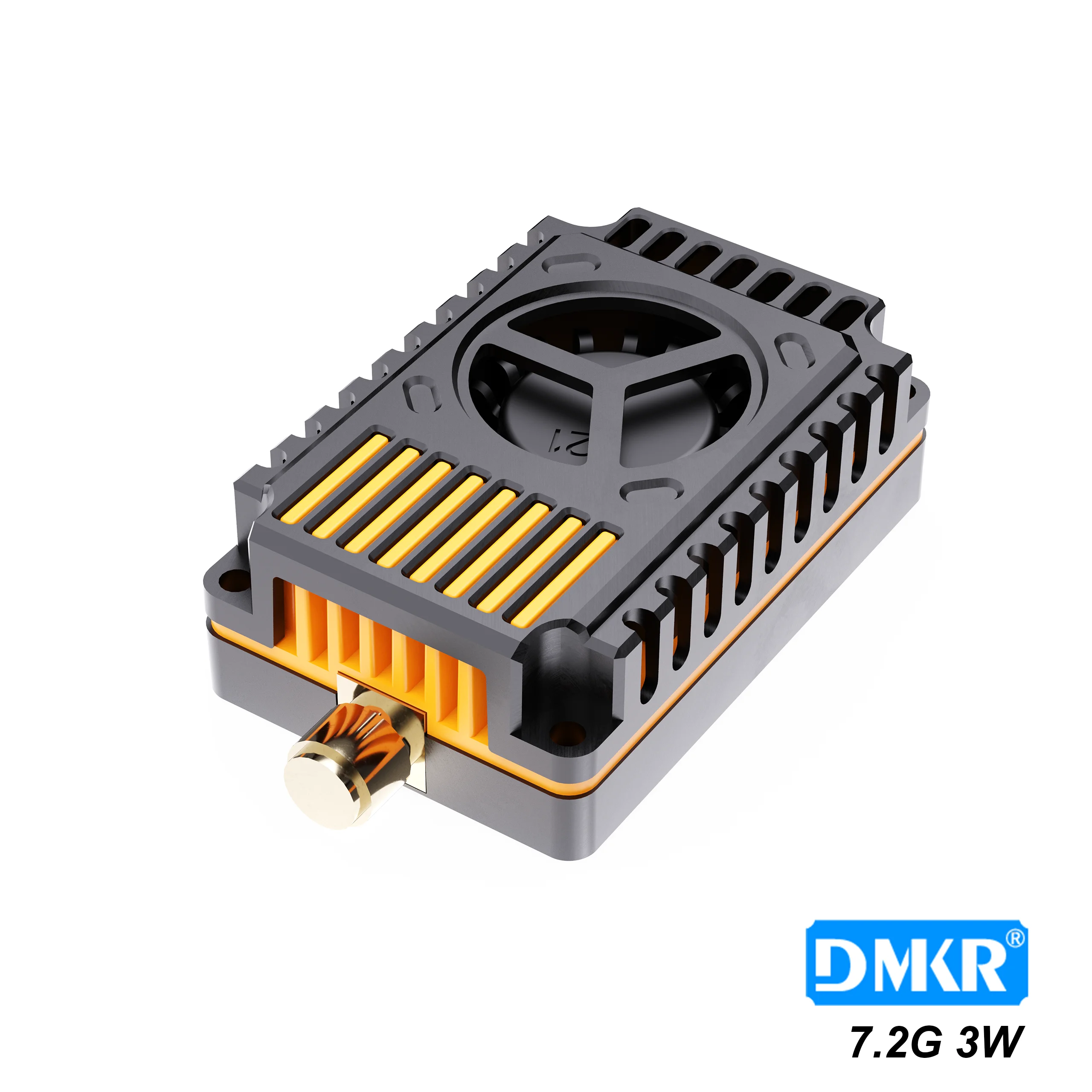

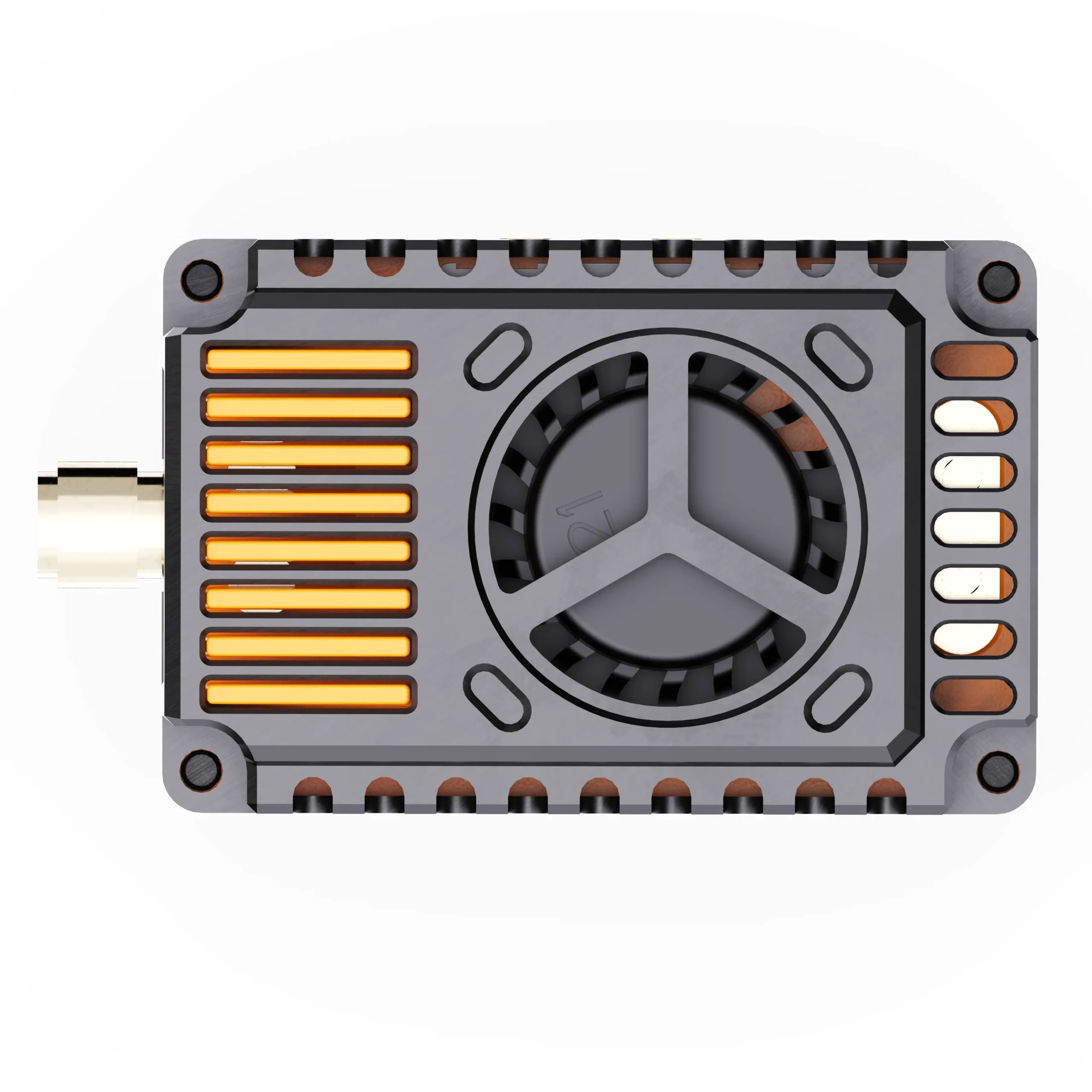

DMKR 7.2G 3W 64CH FPV Analog VTX

Overview

This 7.2GHz analog video transmitter is designed for ultra high-power UAV transmission and flexible multi-band RF deployment.

With RF output up to 3W and extended frequency coverage, the module is intended for applications requiring maximum transmission capability, adaptable frequency selection, and stable operation under demanding conditions.

With in-house development and continuous iteration, the design supports customization and system-level integration, making it suitable for OEM and ODM projects across different UAV platforms.

RF Performance

The transmitter operates within 6110–7210MHz and supports 60 selectable channels for flexible frequency allocation.

With adjustable RF output power (25mW / 1000mW / 3000mW), it supports both low-power testing and moderate high-power transmission scenarios.

Power and Integration

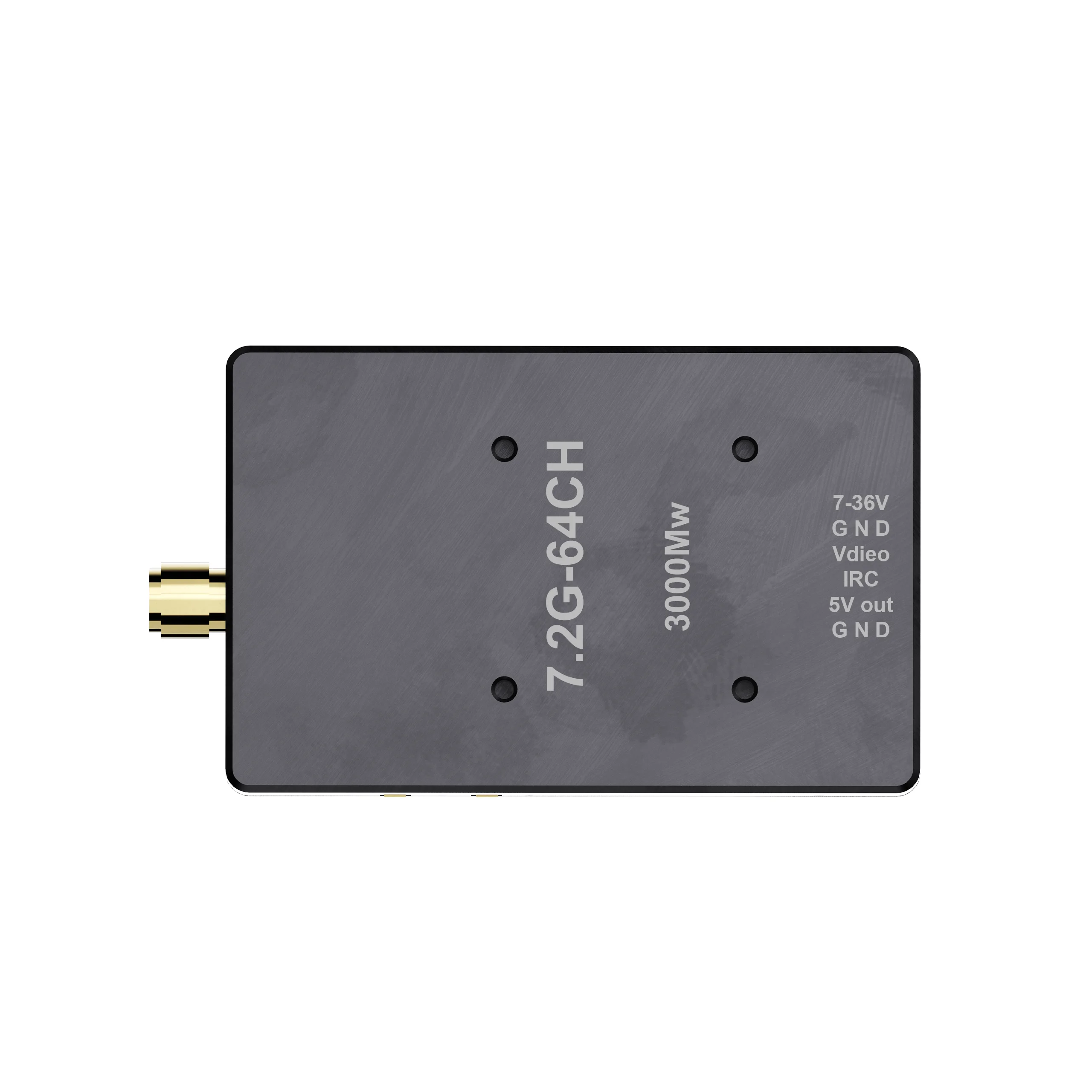

The module supports DC 7–36V input and is compatible with 2–8S battery systems, allowing direct integration into various UAV platforms.

IRC Tramp protocol is supported for remote adjustment of frequency and power via flight controller or OSD interface.

Operational Notes

• Antenna must be installed before powering on

• Ensure sufficient cooling during high-power operation

• Verify correct voltage input before connection

• Avoid improper wiring to prevent module damage
