FPV Video Products Manufacturer & OEM/ODM Supplier

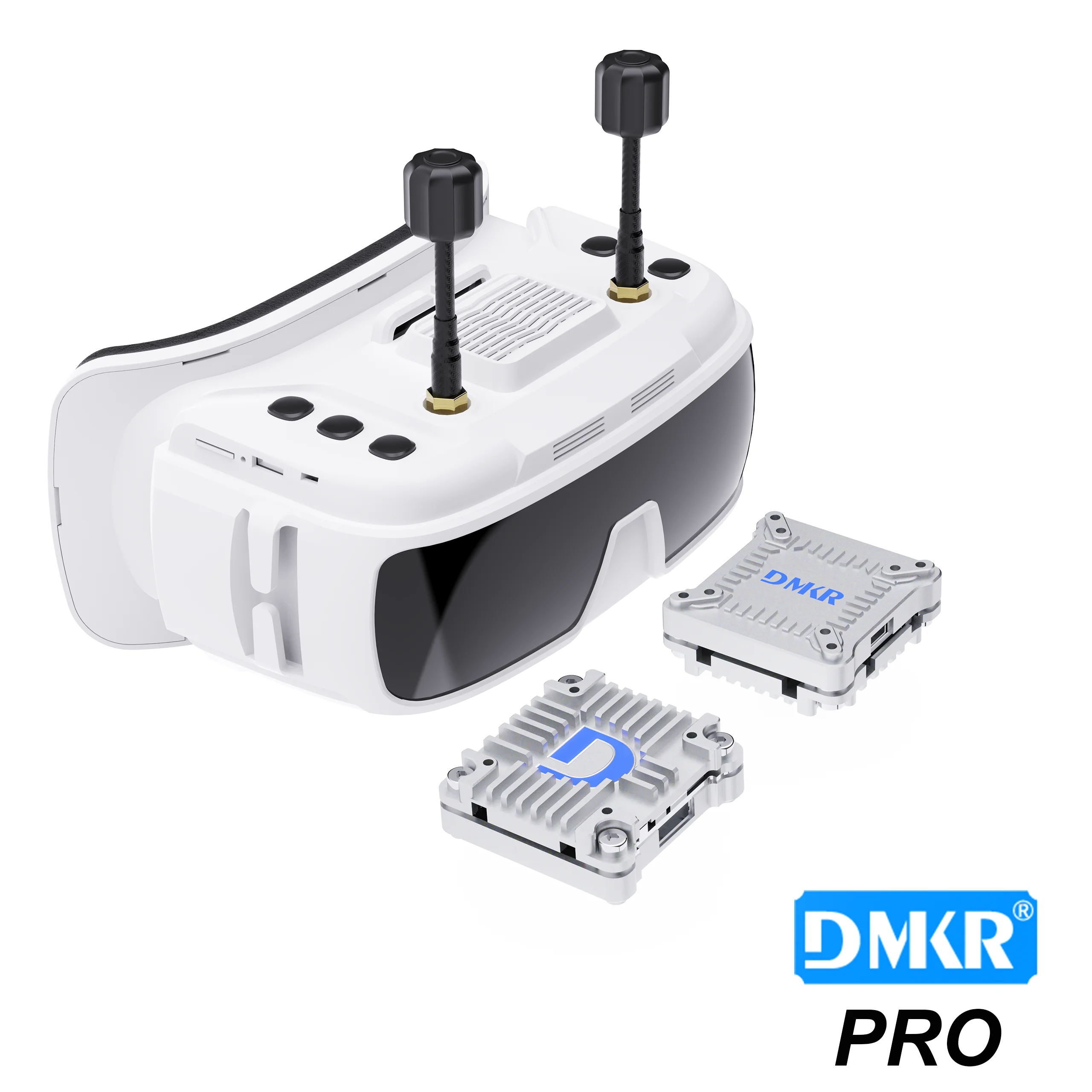

DMKR HD-VT-PRO 4.9–5.9G HD FPV Video Kit with Goggles

Pro HD FPV video kit with goggles, 1080p60 video output, 4.9–5.9GHz frequency range, up to 28dBm transmit power, 60ms latency, MSP OSD support, adaptive power control, automatic frequency adjustment, dual antennas, and 3.5–26V input. The Pro version uses a 1/1.8-inch 2MP night-vision camera module and supports up to 30km outdoor range with standard 3dBi circularly polarized antennas.

Get Instant Quote
OEM&ODM

In-House Manufacturing

Full control over production

Proven Hardware Design

Tested for stable performance

Reliable FPV Components

Reliable across key components

Early Tech Access

Stay ahead of the market

Specifications

Additional information

Weight 6907076 kg
Frequency

4.9GHz-5.9GHz
Maximum System Power Consumption

5W
Mounting Holes

25.5×25.5mm
Camera Module

1/2.9" 2MP standard camera module, 14 × 14 mm
Video Output

1080p @ 60fps
OSD Support

Supports MSP OSD protocol
Adaptive Power Control

Supported
Automatic Frequency Adjustment

Supported
Antenna

Dual antennas, IPEX 1st generation × 2
Transmit Power Range

Up to 25dBm
Latency

60 ms
Weight

5.5g (Camera Not Included)
Dimensions

29.5 × 29.5mm

Description

Long-Range HD FPV Video Kit Pro with Goggles

The HD FPV Video Kit Pro is designed for long-range FPV drones, fixed-wing aircraft, cruising UAVs, robotics platforms, and UAV video transmission projects that require higher transmit power and longer operating range.

Key Specifications for B2B Projects

The Pro kit supports 1080p60fps video output, 4.9–5.9GHz operation, 60ms latency, MSP OSD, adaptive power control, automatic frequency adjustment, and dual IPEX antenna ports. The HD-TX-PRO air unit supports 3.5–26V input and a maximum transmit power of 28dBm.

OEM/ODM Supply

The Pro kit is suitable for UAV manufacturers, FPV system integrators, robotics projects, B2B distributors, and OEM/ODM supply. Custom branding, packaging, antenna matching, and kit configuration can be discussed based on project requirements.

Comparison


Learn More
Learn More
Model HD-TX HD-TX-PRO
Max. System Power Consumption 5W 10W
Frequency 4.9–5.9GHz 4.9–5.9GHz
Camera Module 1/2.9″ 2MP standard camera module, 14 × 14 mm 1/1.8″ 2MP night-vision camera module, 19 × 19 mm
Video Output 1080p @ 60fps 1080p @ 60fps
OSD Supports MSP OSD protocol Supports MSP OSD protocol
Adaptive Power Control ✔︎ ✔︎
Automatic Frequency Adjustment ✔︎ ✔︎
Transmit Power Up to 25dBm Up to 28dBm
