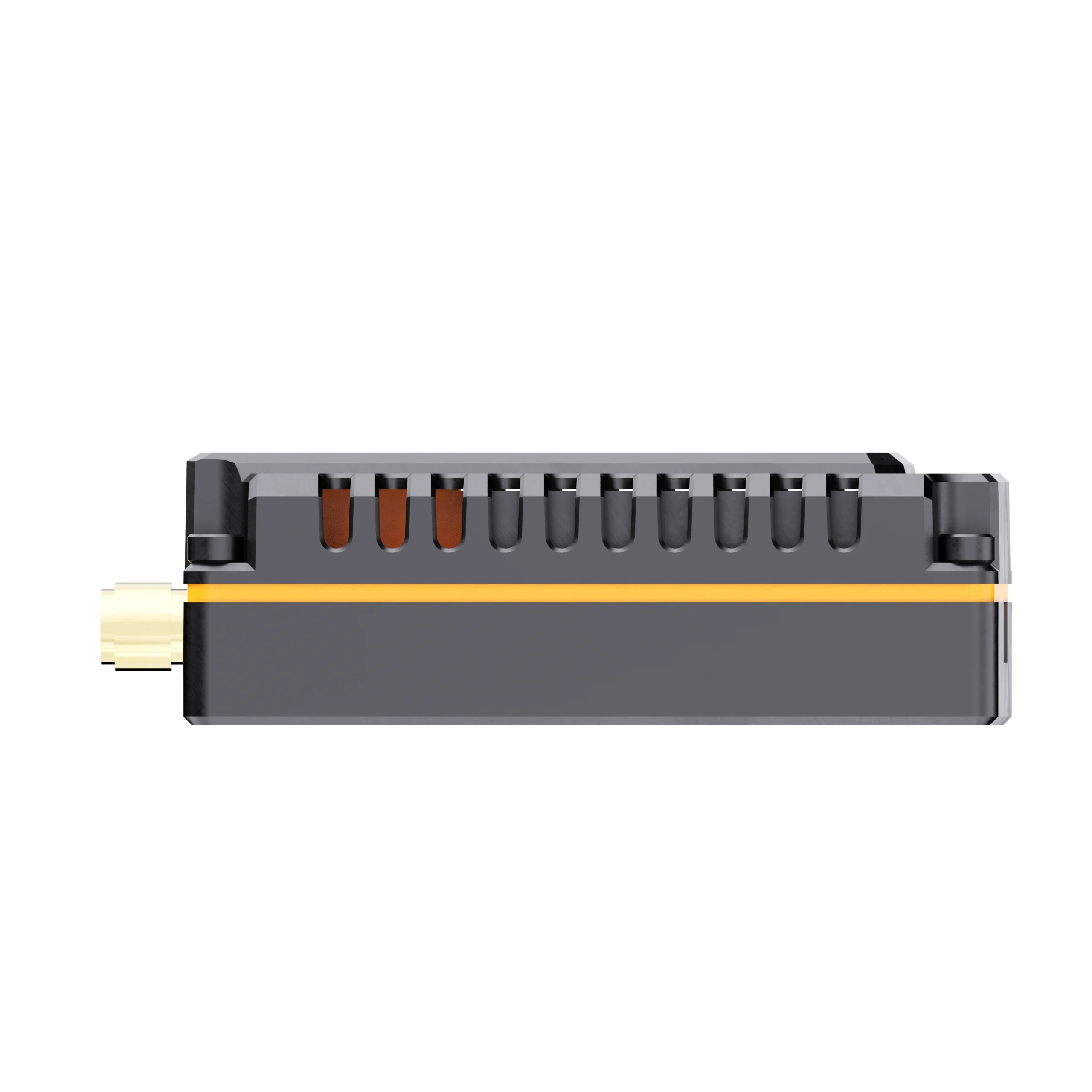

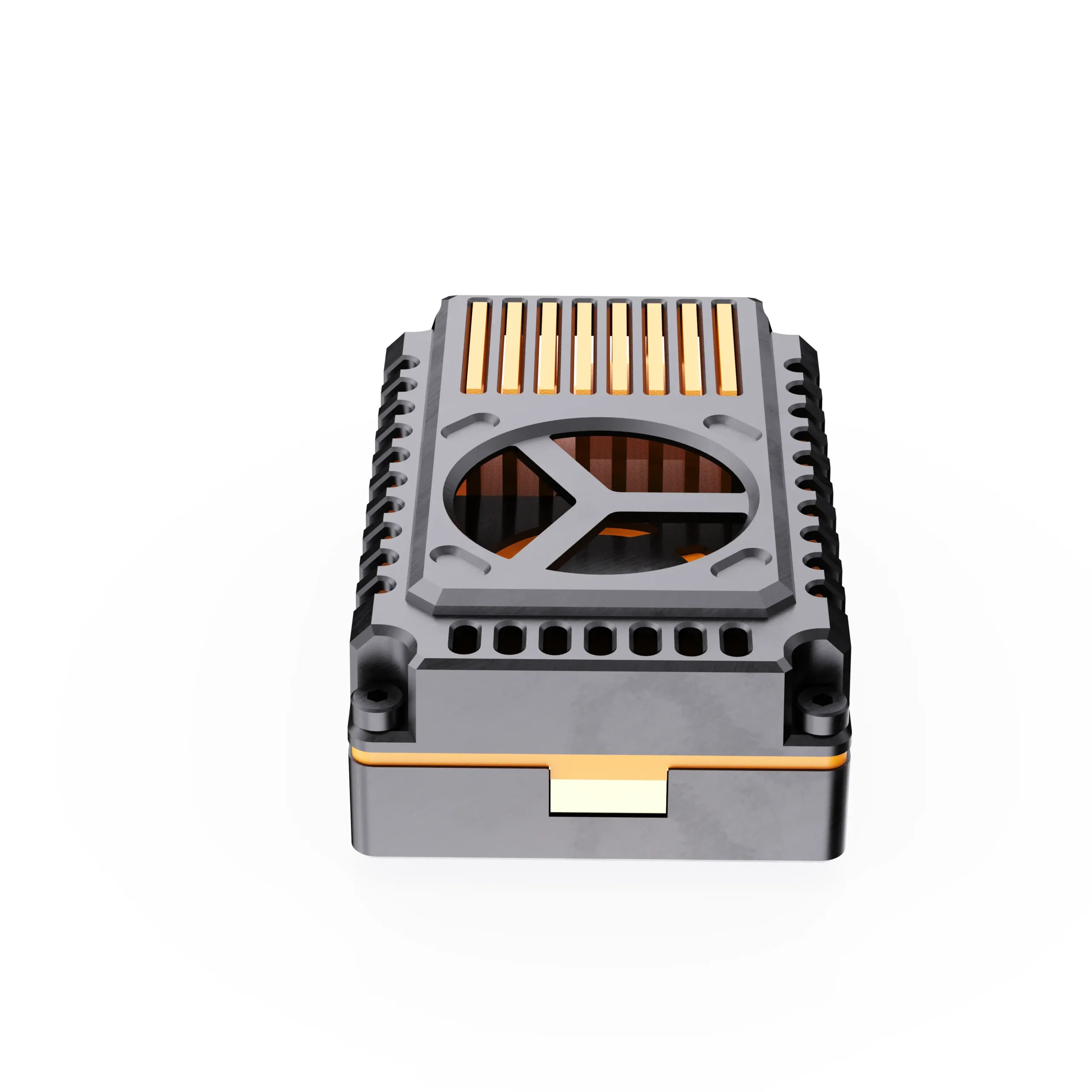

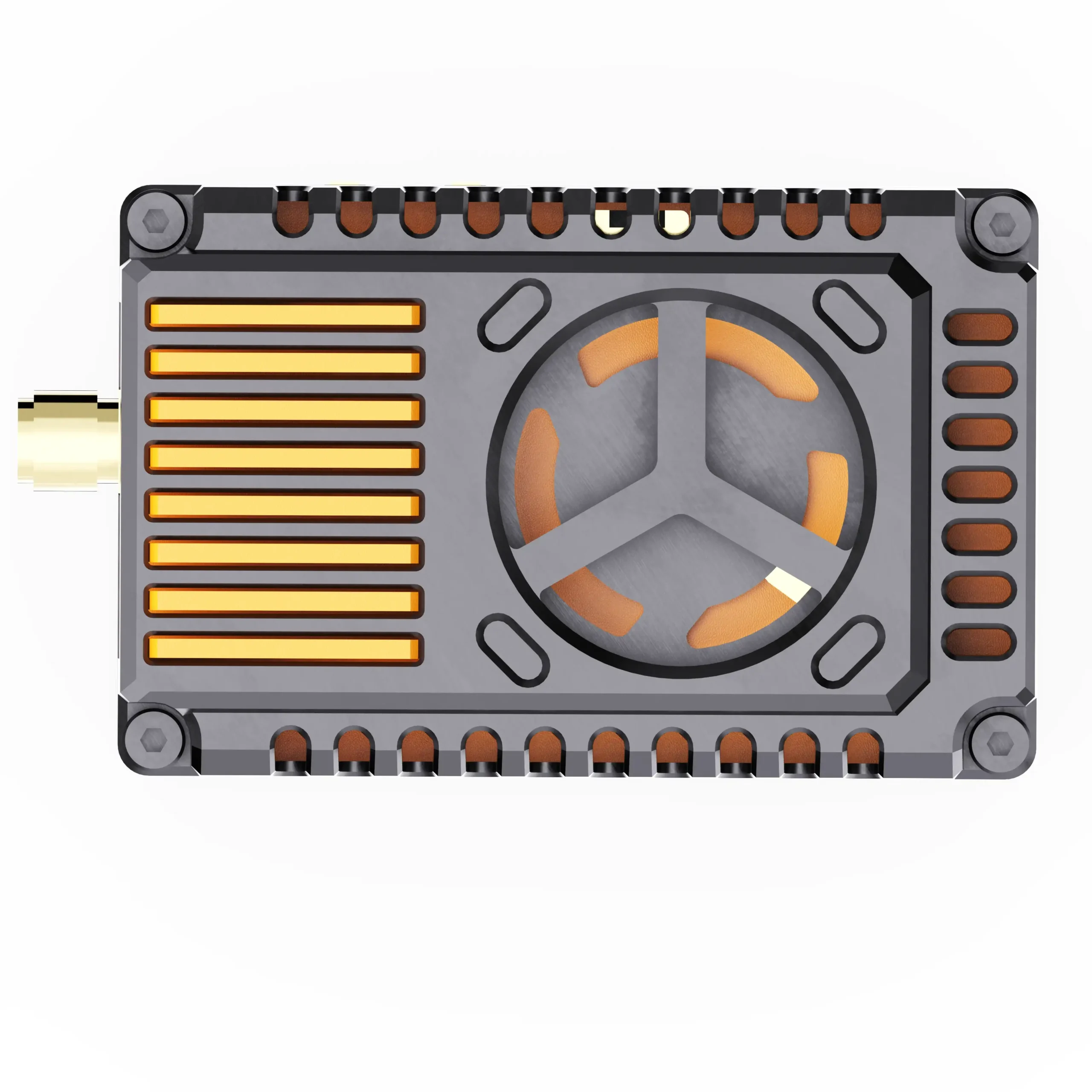

DMKR 4.9G-6G 15W 80CH FPV Analog VTX

Overview

This 4.9–6GHz analog video transmitter is designed for ultra high-power UAV transmission and flexible multi-band RF deployment.

With RF output up to 15W and extended frequency coverage, the module is intended for applications requiring maximum transmission capability, adaptable frequency selection, and stable operation under demanding conditions.

With in-house development and continuous iteration, the design supports customization and system-level integration, making it suitable for OEM and ODM projects across different UAV platforms.

RF Performance

The transmitter operates within 4867–5945MHz and supports 96 selectable channels across multiple frequency bands.

Compared to standard fixed-band transmitters, the extended frequency range enables flexible channel allocation and improved adaptability in interference-prone environments.

With adjustable RF output power (25mW / 2000mW / 4000mW), it can be configured for both short-range testing and higher power transmission scenarios.

Power and Integration

The module supports DC 7–36V input, allowing direct integration with a wide range of UAV battery systems.

IRC Tramp protocol is supported for remote adjustment of frequency and power via flight controller or OSD interface.

Operational Notes

• Antenna must be installed before powering on

• Ensure sufficient cooling during high-power operation

• Verify correct voltage input before connection

• Avoid improper wiring to prevent module damage
