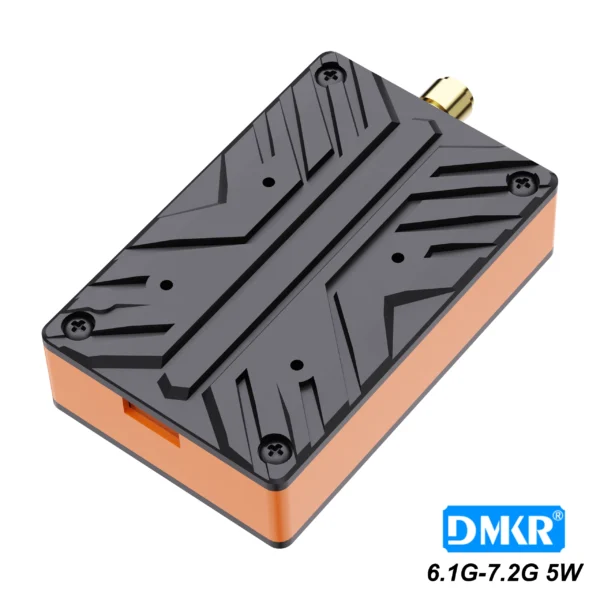

DMKR 6.1G-7.2G 5W 64CH FPV Analog VTX

Overview

This 6.1–7.2GHz analog video transmitter is designed for UAV systems operating in high-frequency RF environments where flexible channel allocation and system-level integration are required.

With 64 selectable channels and adjustable output power up to 5W, the module is suitable for specialized UAV video transmission, frequency-separated deployments, and custom RF projects.

With in-house development and continuous iteration, the design supports customization and system-level integration, making it suitable for OEM and ODM projects across different UAV platforms.

RF Performance

The transmitter operates within 6110–7210MHz and supports 64 channels, providing flexible frequency selection for high-frequency UAV transmission systems.

Output power is adjustable between 25mW, 2.5W, and 5W, allowing the module to be configured for low-power testing, standard deployment, or higher-power transmission requirements.

Power and Integration

The module supports DC 15–36V input and is compatible with 2–8S battery systems, allowing direct integration into different UAV power platforms.

The 8P 1.0 wiring interface supports power input, video signal, IRC control, 5V output, and ground connections, making integration straightforward for UAV and FPV systems.

Operational Notes

• Antenna must be installed before powering on

• Ensure sufficient cooling during high-power operation

• Verify correct voltage input before connection

• Avoid improper wiring to prevent module damage
