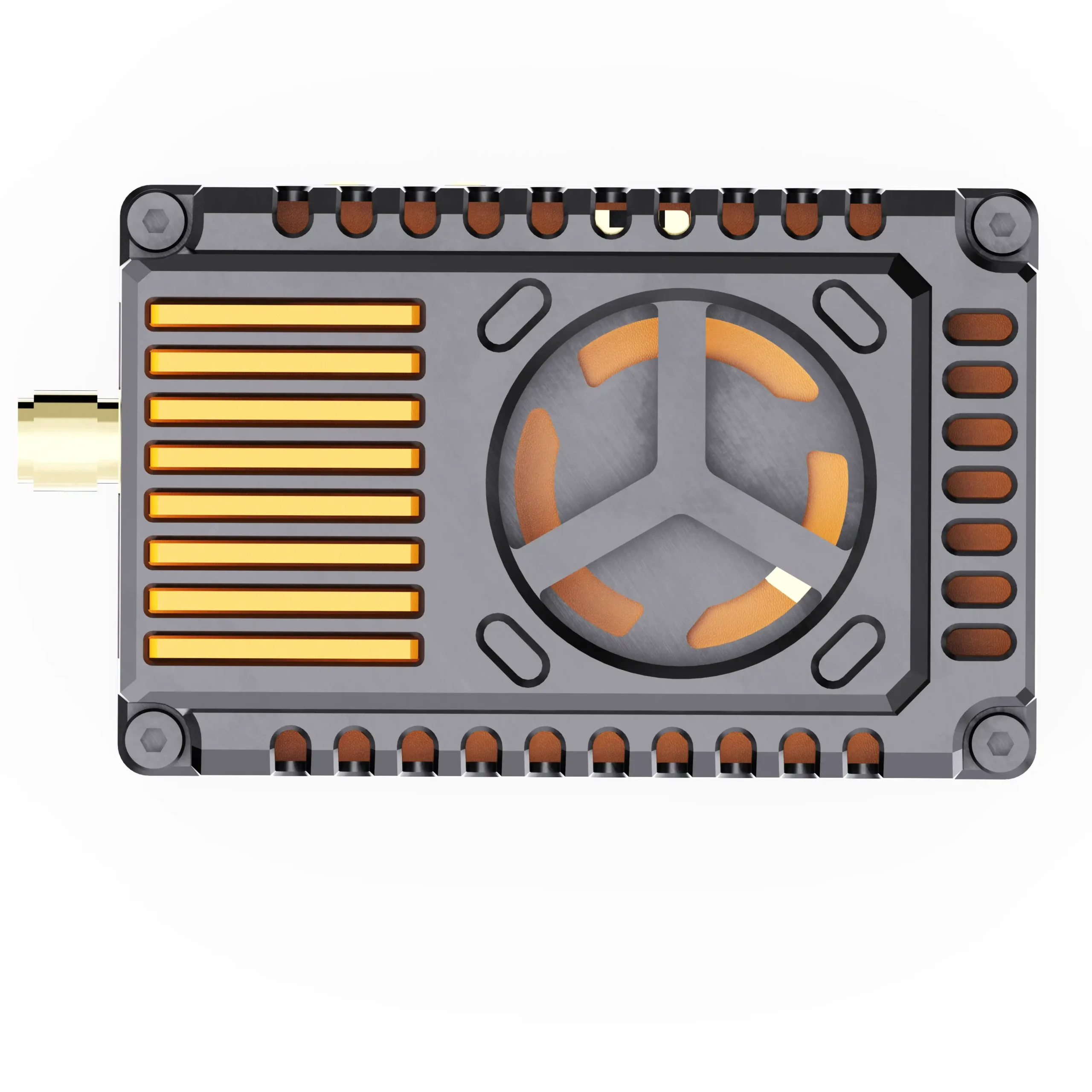

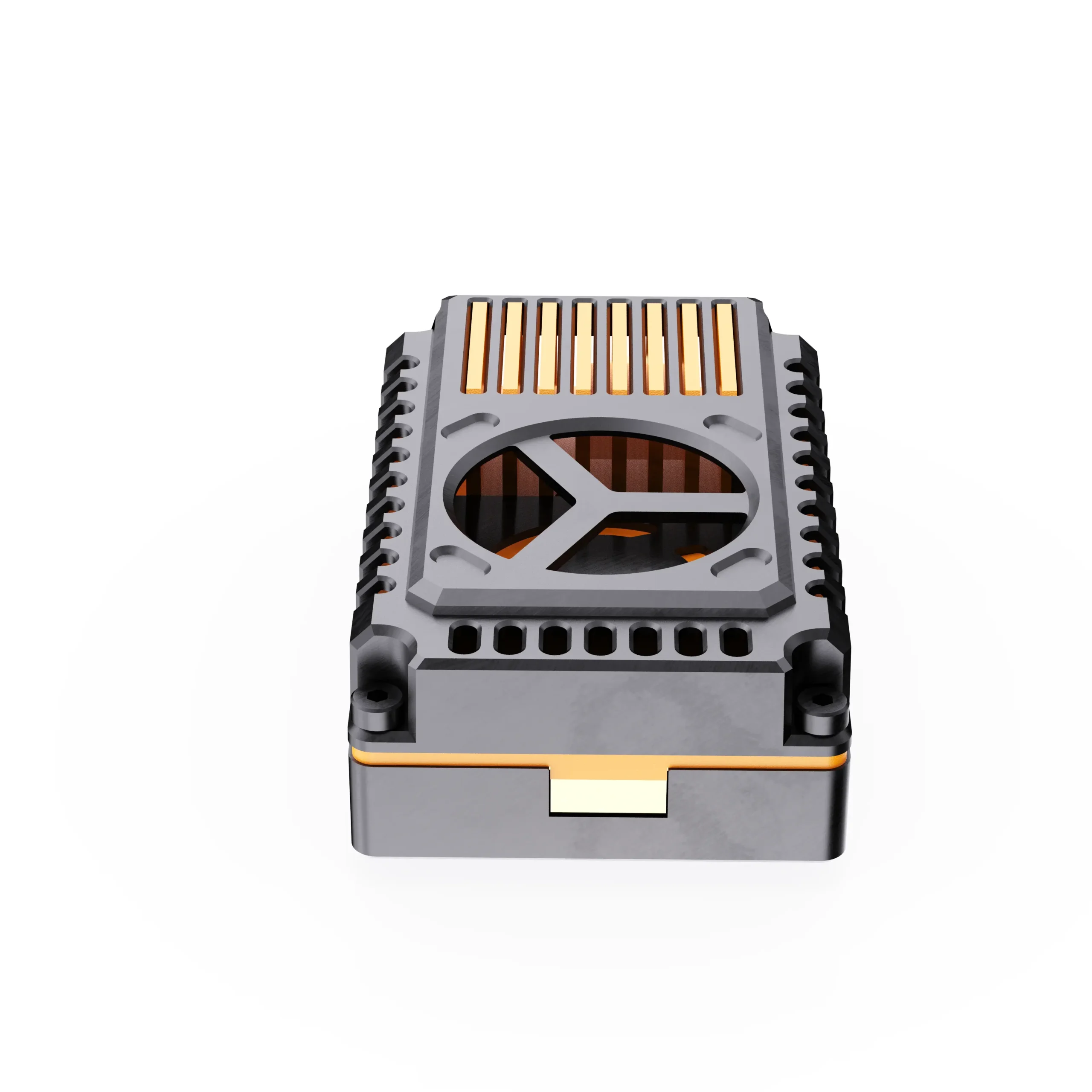

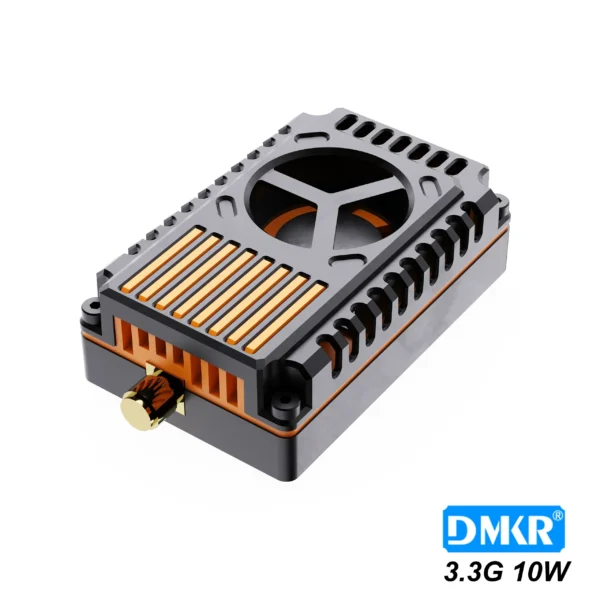

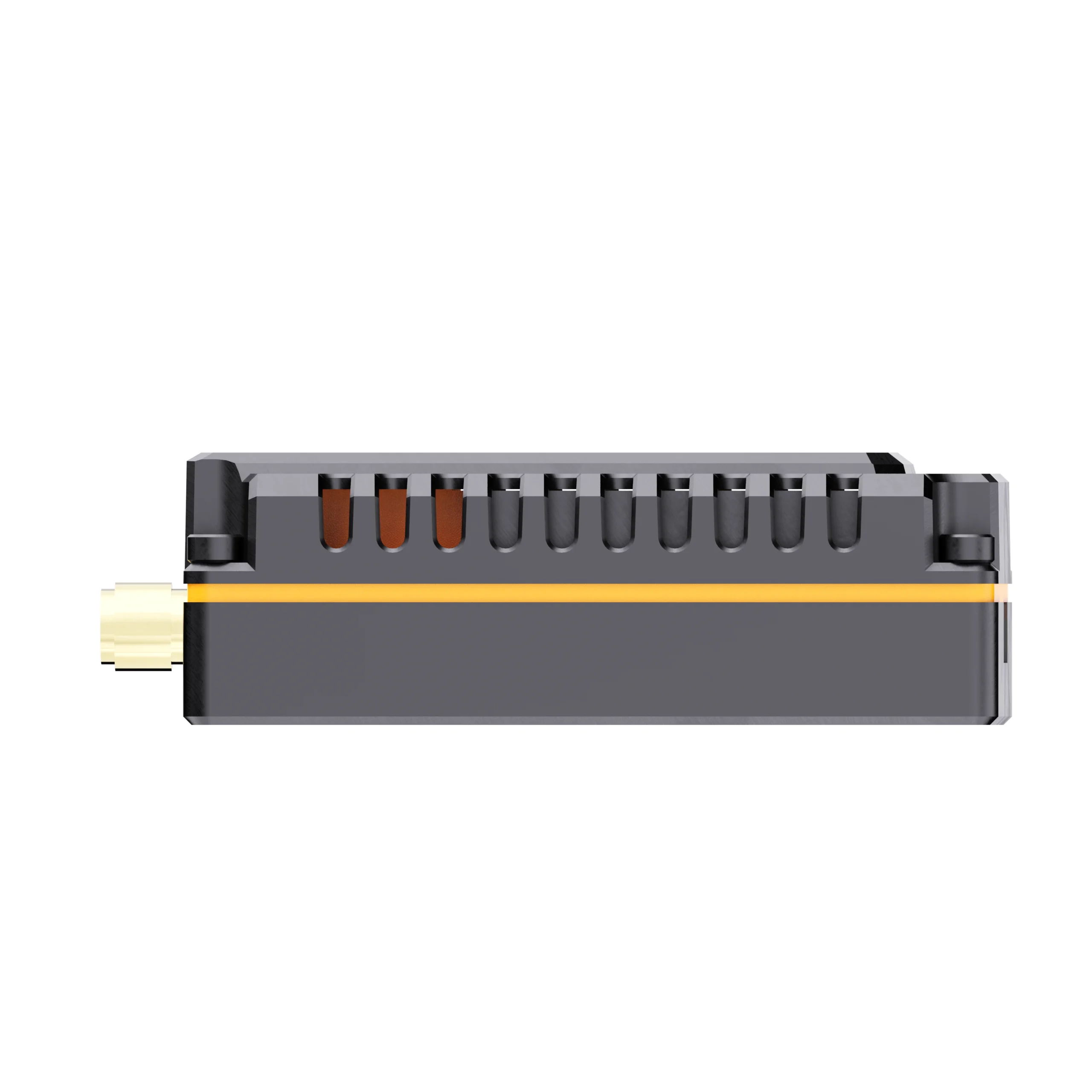

DMKR 3.3GHz 10W 16CH FPV Analog VTX

Overview

This 3.3GHz analog video transmitter is designed for ultra high-power UAV transmission systems operating in non-standard frequency environments.

With RF output up to 10W, the module is intended for applications requiring maximum transmission capability, stable signal output, and system-level integration under demanding conditions.

With in-house development and continuous iteration, the design supports customization and system-level integration, making it suitable for OEM and ODM projects across different UAV platforms.

RF Performance

The transmitter operates within 3170–3470MHz and supports 16 selectable channels for flexible frequency deployment.

RF output power is adjustable across multiple levels (1W / 2.5W / 5W / 7.5W / 10W), allowing configuration based on system requirements and operating conditions.

The high-power design is suitable for scenarios where transmission range, signal penetration, and interference resistance are critical factors.

Power and Integration

The module supports DC 15–36V input, allowing direct integration with a wide range of UAV battery systems.

IRC Tramp protocol is supported for remote adjustment of frequency and power via flight controller or OSD interface.

Operational Notes

• Antenna must be installed before powering on

• Ensure sufficient cooling during high-power operation

• Verify correct voltage input before connection

• Avoid improper wiring to prevent module damage
