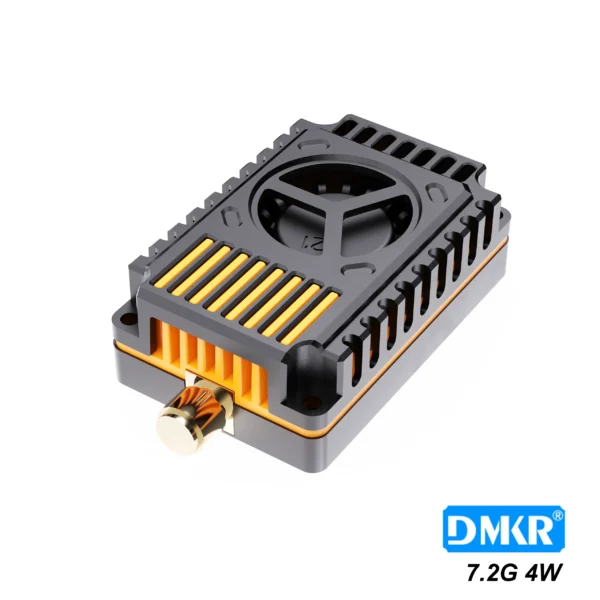

DMKR 7.2G 4W 64CH FPV Analog VTX

Overview

This 7.2GHz analog video transmitter is designed for ultra high-power UAV transmission and flexible multi-band RF deployment.

With RF output up to 4W and extended frequency coverage, the module is intended for applications requiring maximum transmission capability, adaptable frequency selection, and stable operation under demanding conditions.

With in-house development and continuous iteration, the design supports customization and system-level integration, making it suitable for OEM and ODM projects across different UAV platforms.

RF Performance

The transmitter operates across 6110–7210MHz with 64 available frequency points, giving system integrators more flexibility for channel planning in specialized RF environments.

Output power is adjustable between 25mW, 2000mW, and 4000mW, allowing the module to be configured for testing, medium-power operation, or higher-power transmission requirements.

Power and Integration

The module supports DC 7–36V input and is compatible with 2–8S battery systems, allowing direct integration into different UAV power platforms.

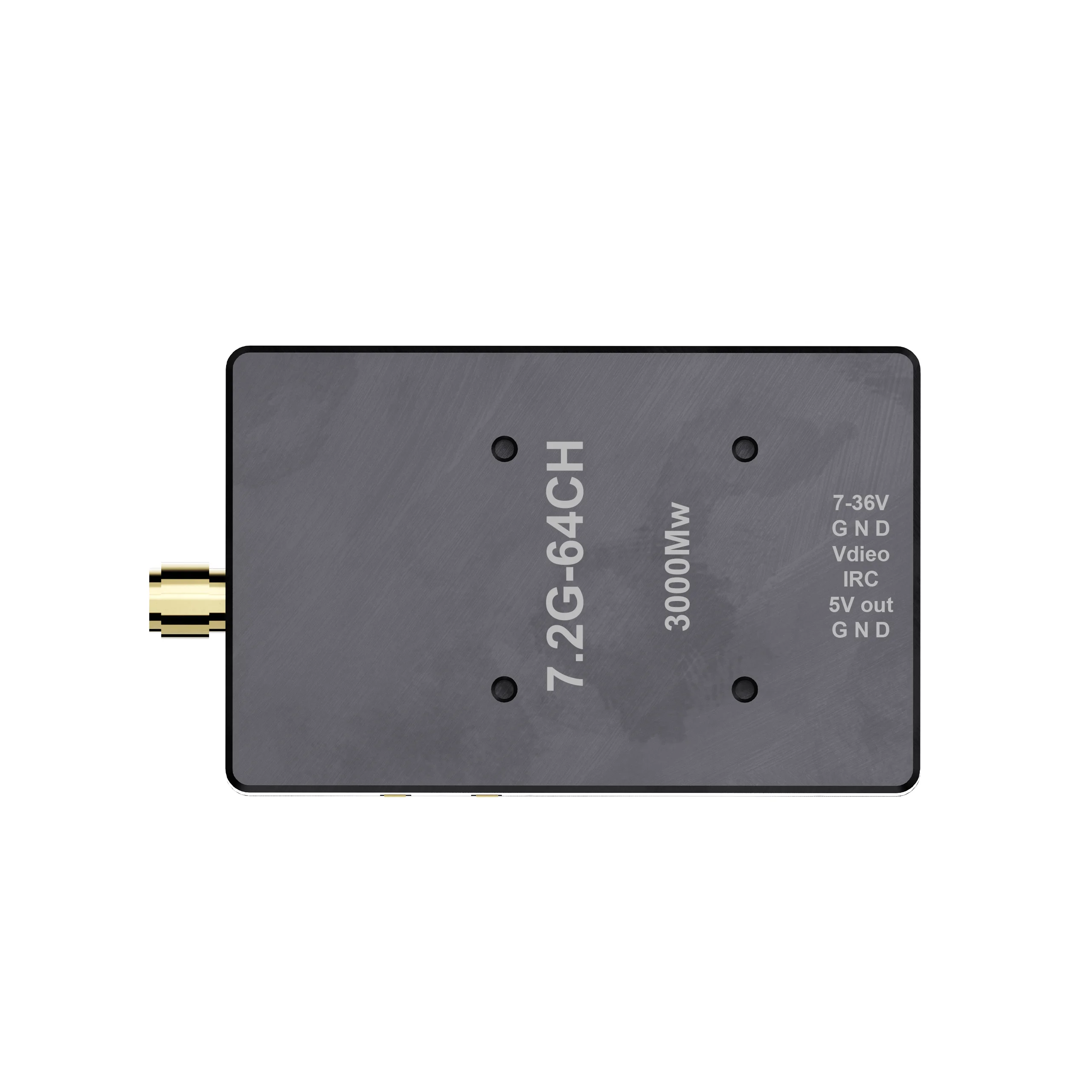

The 6P 1.0 wiring interface supports power input, video signal, IRC control, 5V output, and ground connections, making integration straightforward for UAV and FPV systems.

Operational Notes

• Antenna must be installed before powering on

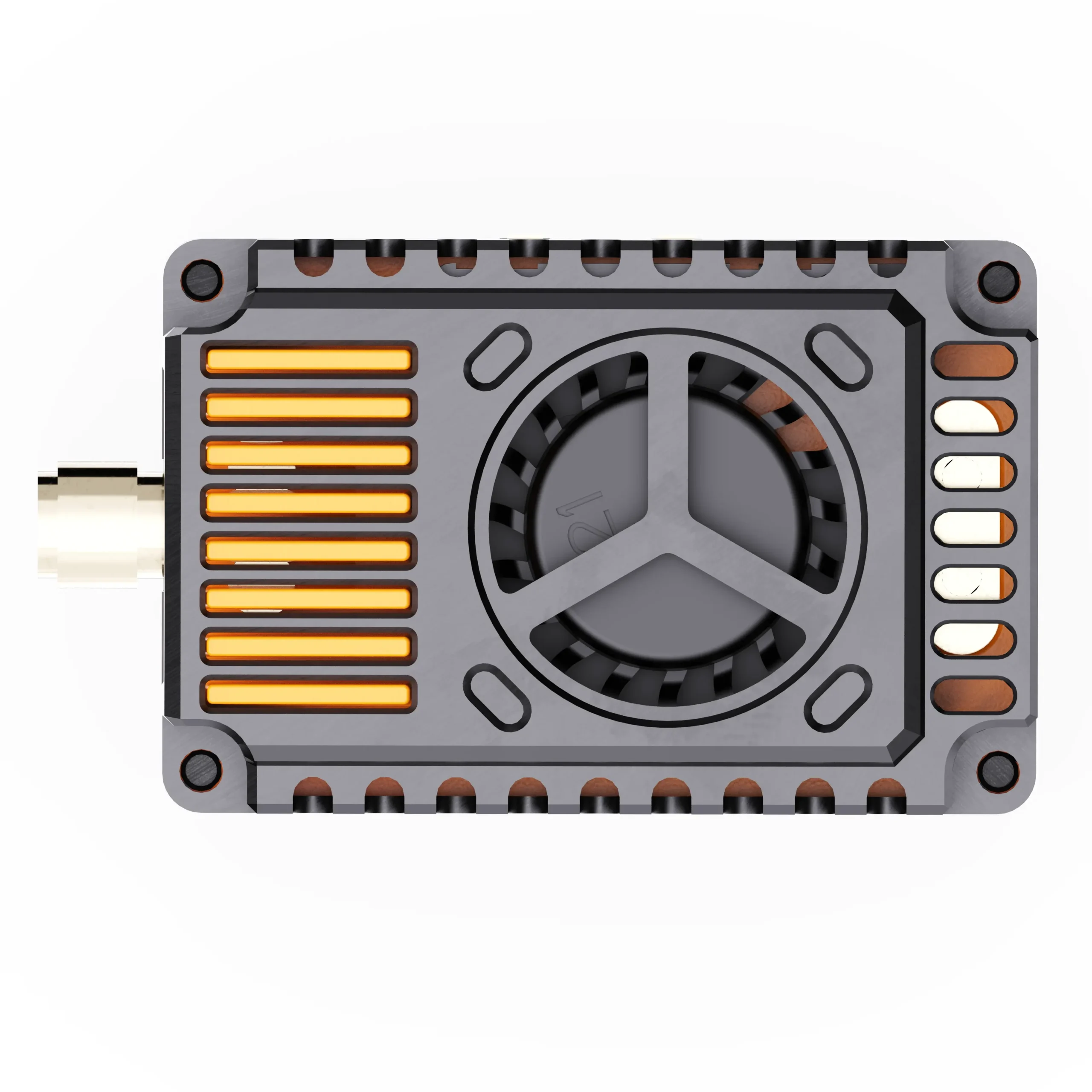

• Ensure sufficient cooling during high-power operation

• Verify correct voltage input before connection

• Avoid improper wiring to prevent module damage
