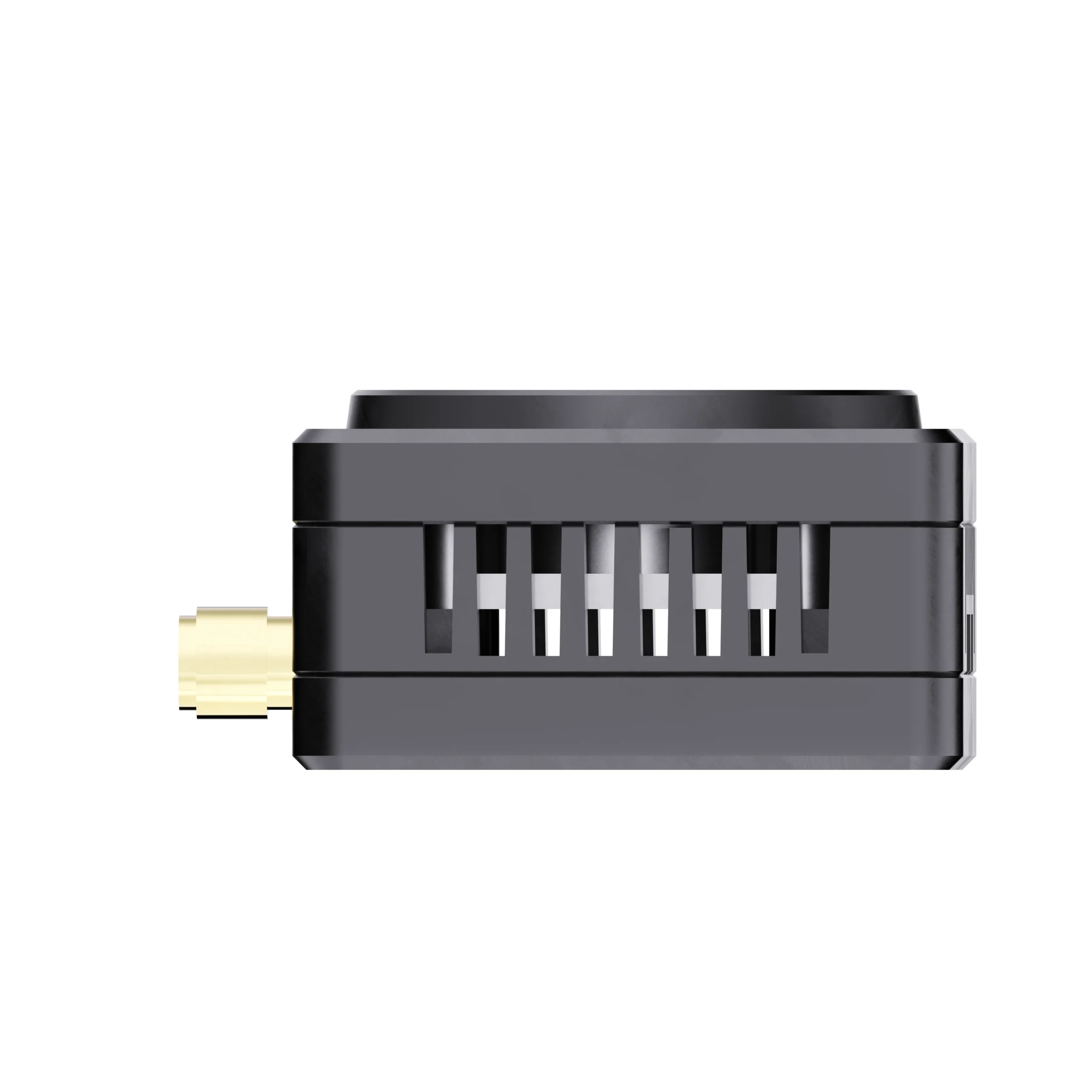

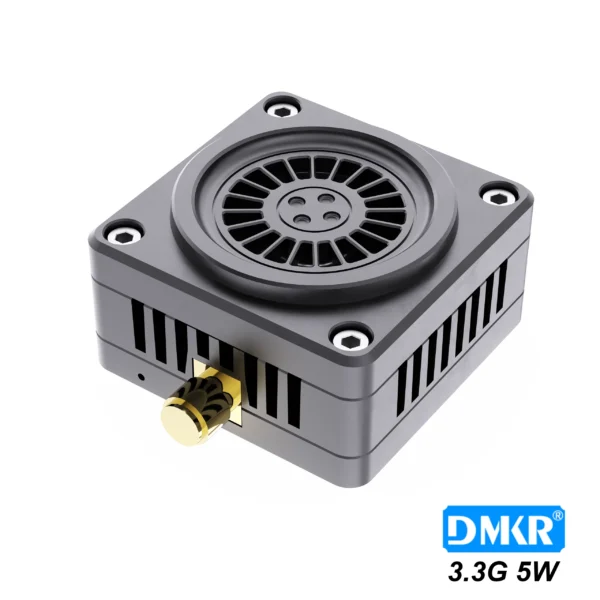

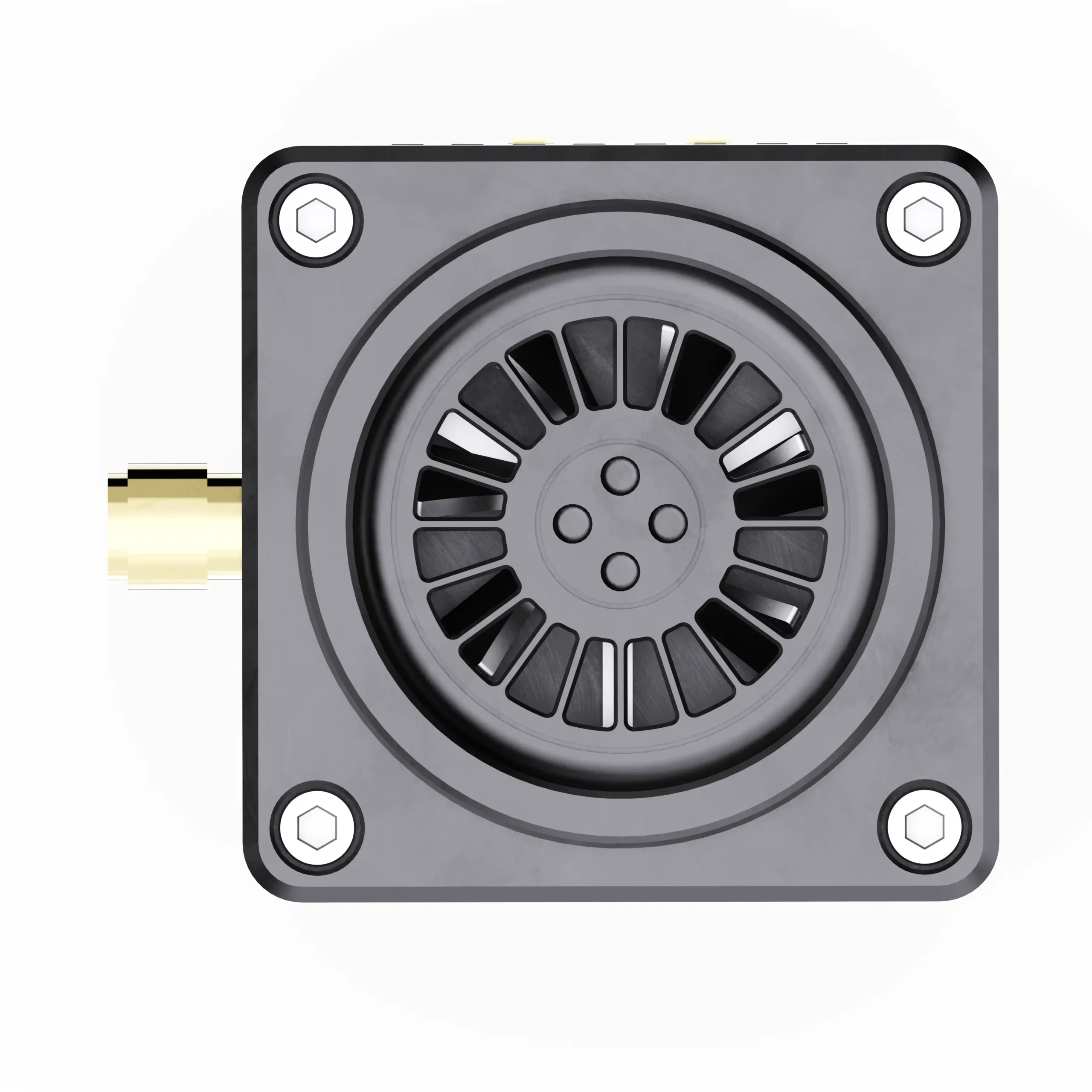

DMKR 3.3G 5W 16CH FPV Analog VTX

Overview

This 3.3GHz analog video transmitter is designed for high-power UAV video transmission systems operating in non-standard frequency environments.

With 5W RF output capability, the module is intended for applications requiring extended transmission performance, stable signal output, and system-level integration.

With in-house development and continuous iteration, the design supports customization and system-level integration, making it suitable for OEM and ODM projects across different UAV platforms.

RF Performance

The transmitter operates within 3170–3470MHz and supports 16 selectable channels for flexible frequency deployment.

With adjustable RF output up to 5W (25mW / 5000mW), it can be configured for low-power testing or high-power transmission scenarios.

Power and Integration

The module supports DC 6–36V input, allowing direct integration with a wide range of UAV battery systems.

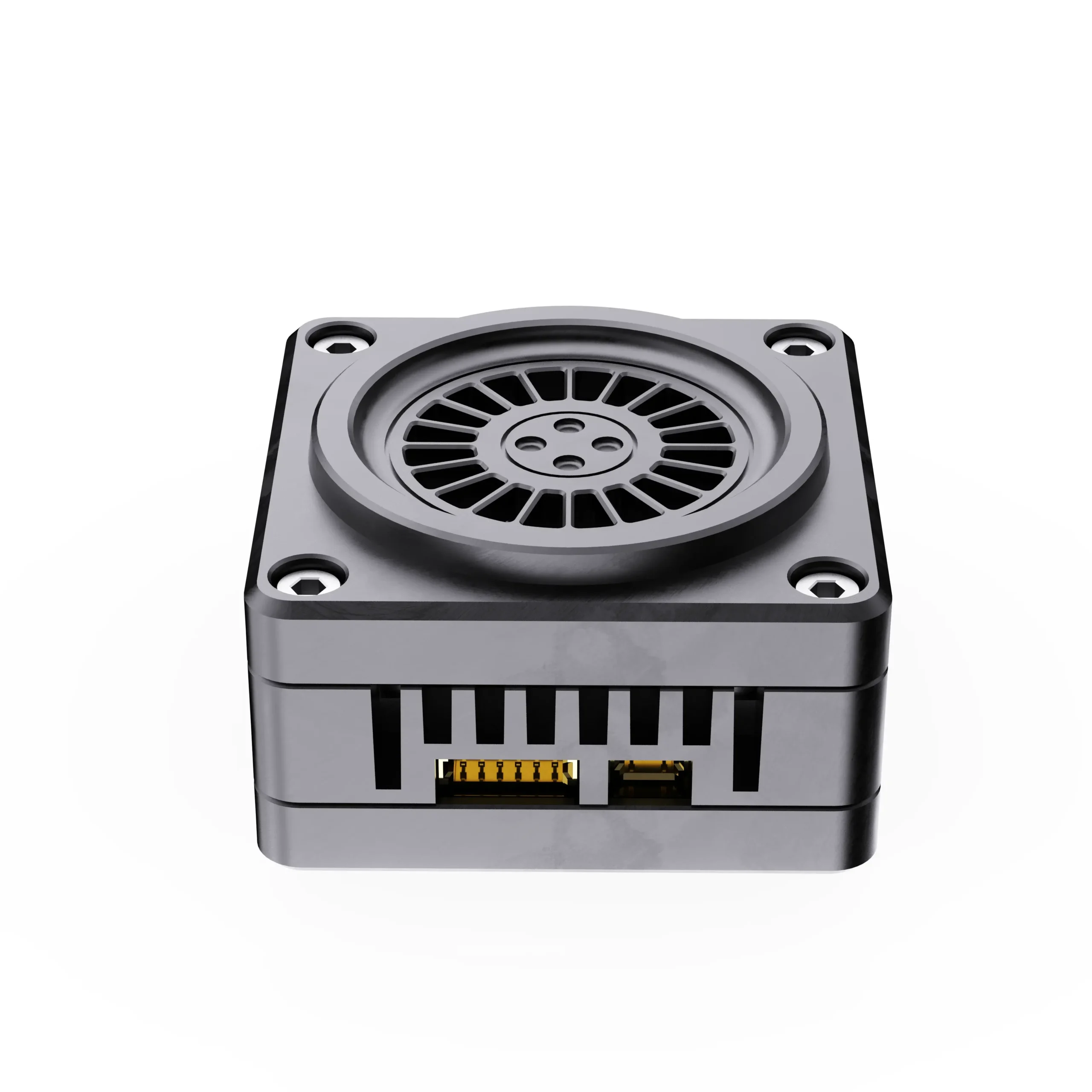

Standard 6P interface supports power, video, and control signal connections, simplifying system integration.

Operational Notes

• Antenna must be installed before powering on

• Ensure sufficient cooling during high-power operation

• Verify correct voltage input before connection

• Avoid improper wiring to prevent module damage
